Applet in Java

• Applets are small Java applications that can be accessed on an Internet server, transported over Internet, and can be automatically installed and run as apart of a web document. Any applet in Java is a class that extends the java.applet.Applet class.
• An Applet class does not have any main() method.
• It is viewed using JVM. The JVM can use either a plug-in of the Web browser or a separate runtime environment to run an applet application.
• JVM creates an instance of the applet class and invokes init() method to initialize an Applet.

---

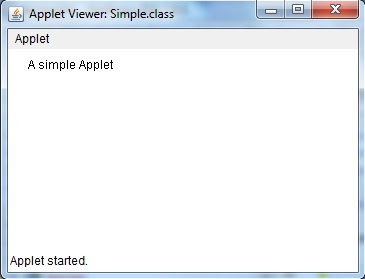

A Simple Applet

import java.awt.*;
import java.applet.*;
public class Simple extends Applet
{
 public void paint(Graphics g)
 {
  g.drawString("A simple Applet", 20, 20);
 }
}

Every Applet application must declare a paint() method. This method is defined by AWT class and must be overridden by the applet. paint() method is called each time an applet neede to redisplay its output. Another important thing to notice about applet application is that, execution of an applet does not begin at main()method. In fact an applet application does not have any main() method.

---

Advantages of Applets

1. Very less response time as it works on the client side.
2. Can be run using any browser, which has JVM running in it.

---

Applet class

Applet class provides all necessary support for applet execution, such as initializing and destroying of applet. It also provide methods that load and display images and methods that load and play audio clips.

An Applet Skeleton

Most applets override these four methods. These four methods forms Applet lifecycle.

• init() : init() is the first method to be called. This is where variable are initialized. This method is called only once during the runtime of applet.
• start() : start() method is called after init(). This method is called to restart an applet after it has been stopped.
• stop() : stop() method is called to suspend thread that does not need to run when applet is not visible.
• destroy() : destroy() method is called when your applet needs to be removed completely from memory.

---

Example of an Applet Skeleton

import java.awt.*;
import java.applet.*;
public class AppletTest extends Applet
{
 public void init()
 {
  //initialization
 }
 public void start ()
 {
  //start or resume execution
 }
 public void stop()
 {
  //suspend execution
 {
 public void destroy()
 {
  //perform shutdown activity
 }
 public void paint (Graphics g)
 {
  //display the content of window
 }
}

---

Example of an Applet

import java.applet.*;
import java.awt.*;
public class MyApplet extends Applet
{
 int height, width;
 public void init()
 {
  height = getSize().height;
  width = getSize().width;
  setName("MyApplet");
 }
 public void paint(Graphics g)
 {
  g.drawRoundRect(10, 30, 120, 120, 2, 3);
 }
}

---

How to run an Applet Program

An Applet program is compiled in the same way as you have been compiling your console programs. However there are two ways to run an applet.

• Executing the Applet within Java-compatible web browser.
• Using an Applet viewer, such as the standard tool, applet viewer. An applet viewer executes your applet in a window

For executing an Applet in an web browser, create short HTML file in the same directory. Inside body tag of the file, include the following code. (applet tag loads the Applet class)

< applet code = "MyApplet" width=400 height=400 >
< /applet >

---

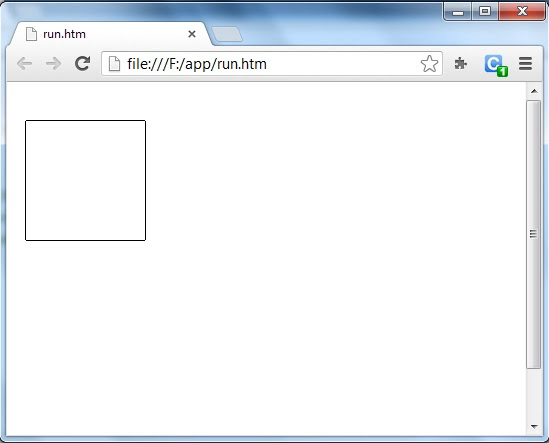

Run the HTML file

---

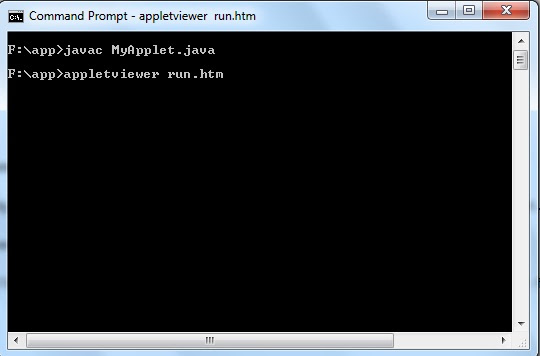

Running Applet using Applet Viewer

To execute an Applet with an applet viewer, write short HTML file as discussed above. If name it as run.htm, then the following command will run your applet program.

f:/>appletviewer run.htm
